IT 100 R
Electrical Actuators
Made of Stainless Steel [AISI 316] and Waterproof IP68

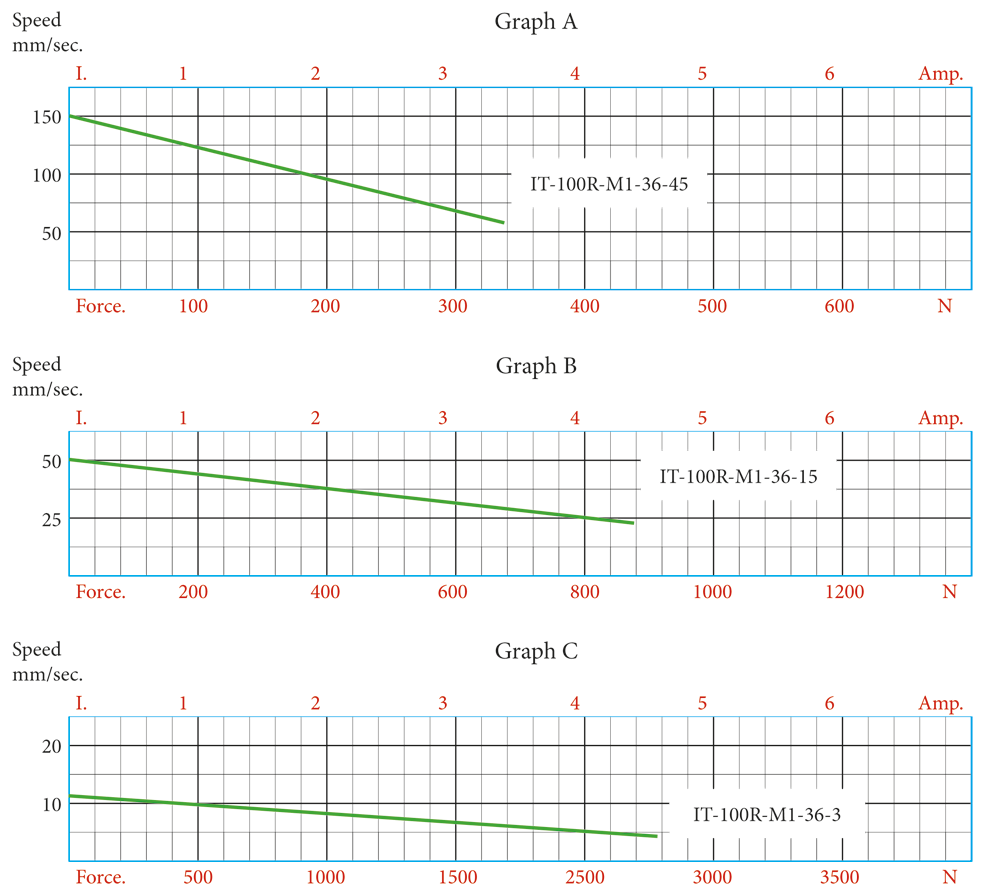

IT 100 R Standard M1
*Above mentioned values are average values. The mesurements are made with the actuators connected to a stable power supply 24 Vdc.

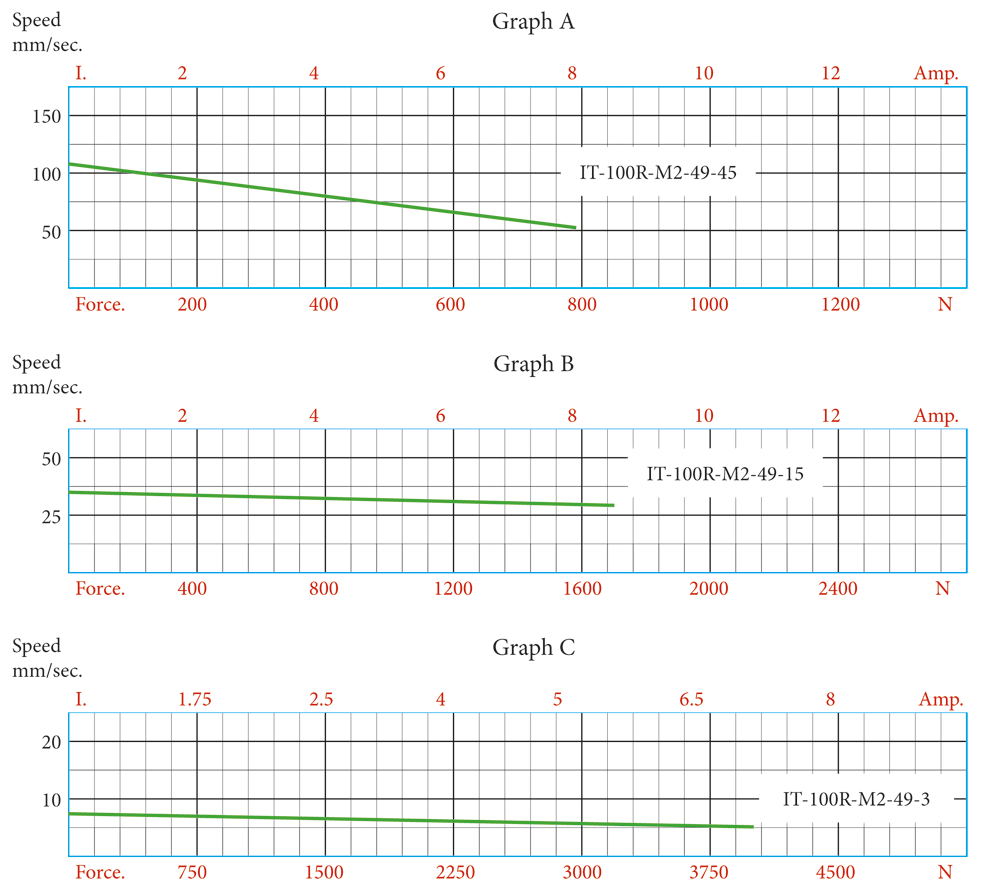

IT 100 R Standard M2
*Above mentioned values are average values. The mesurements are made with the actuators connected to a stable power supply 24 Vdc.
Length Variations
Order Example 1 :IT100R:[Combination]-[Stroke]-[Vdc]-[Encoder] [Combination]: 24Vdc, 4000 N = M2-49-3 [Stroke]:350mm [U]:24 Vdc [Encoder]:With Encoder Order Example: IT100R:M2-49-3-350-24-R
Order Example 2 :IT100R:[Combination]-[Stroke]-[Vdc]-[Encoder] [Combination]: 24Vdc, 2500 N = M1-36-3 [Stroke]:250mm [Vdc]:24 [Encoder]:Without Encoder Order Example: IT100R:M1-36-3-400-24 |
Combination
Vdc |
Force[N] |
Speed[mm/s] |
Combination |
| 24 | 4000 | 10 | M2-49-3 |
| 12 | 4000 | 10 | M2-49-3 |
| 24 | 2500 | 12 | M1-36-3 |
| 24 | 2000 | 40 | M2-49-15 |
| 12 | 2000 | 40 | M2-49-15 |
| 24 | 1200 | 50 | M1-36-15 |
| 12 | 1200 | 7 | M1-36-3 |
| 24 | 800 | 100 | M2-49-45 |
| 12 | 800 | 100 | M2-49-45 |
| 12 | 600 | 25 | M1-36-15 |
| 24 | 500 | 150 | M1-36-45 |
| 12 | 200 | 75 | M1-36-45 |

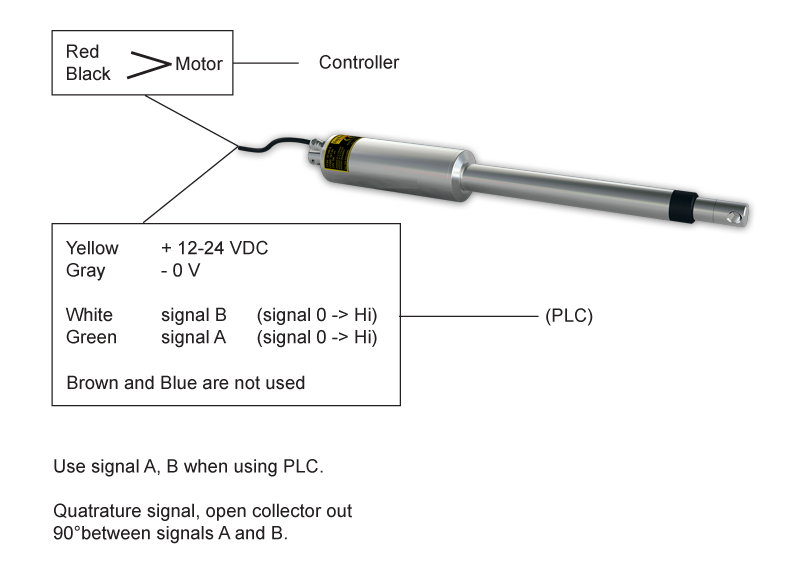

PLC controlled with Encoder inside
